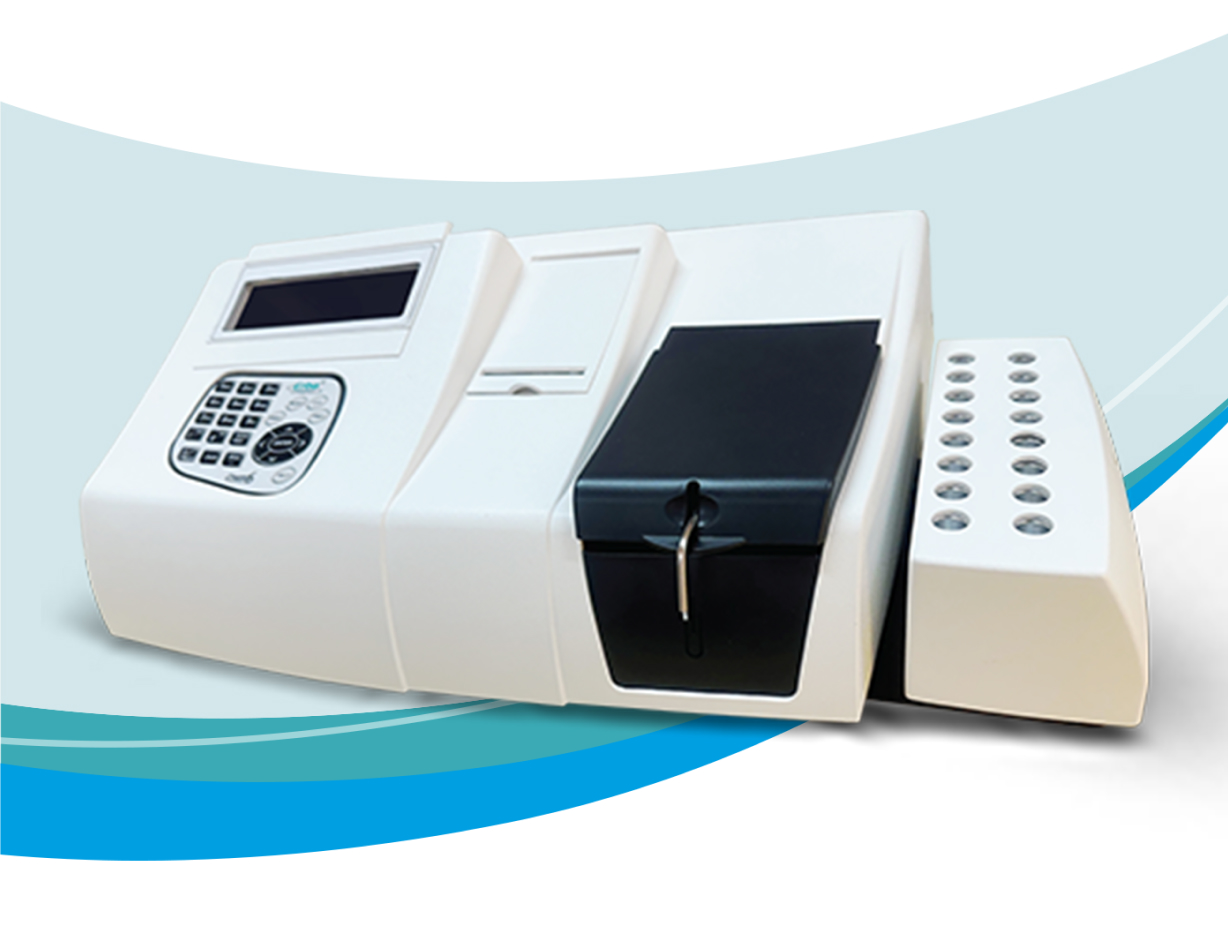

Chem 6
Semi-automated Clinical Chemistry Analyzer


Chem 6
Semi-automated Clinical Chemistry Analyzer
Meet the Chem 6
Product Specifications

Throughput
Static Photometer with 8 IAD filters
Your Benefit:
Ensures precision for longer time with zero fungal growth

Multipositional
Dual cuvette system
Your Benefit:
Ensures flow cell safety and offers flexibility to perform immunoturbidimetry with precision

VersaSpectra
222 user defined test programs
Your Benefit:
Covers the entire panel of chemistry testing

CuvetteEase
18 μL flow cell
Your Benefit:
Ensures low reagent consumption with better Cost Per Test (CPT)

ProbeCare
16 Position inbuilt Incubator
Your Benefit:
Ensuring incubation of test tubes at correct temperature, increases the accuracy of test results

IndexTrace
Auto Lamp life saving feature
Your Benefit:
Better life span and optimise usage of the lamp
End Point Reactions: Glucose, Cholesterol, Triglycerides, Albumin, Total Protein, Uric Acid, Calcium, Magnesium, Bilirubin Total, Bilirubin Direct
Kinetic Reactions: SGOT, SGPT, GGT, LDH, CK, CK MB, ALP, ACP, Amylase, Lipase
Two Point Rate Reactions: Urea, Creatinine
Immunoturbidimetric Chemistries: RA, CRP, ASO, Direct HDL, Direct LDL, Apo A, ApoB, Lp (a)
Special Chemistries: HbA1c, Iron, Ferritin, Phosphorus, Microprotein, Ammonia, Bicarbonates
Technical Specifications
System Type
Open, Flowcell
Measurement Principle
Colorimetry (Rate/End Point)
Applicable Analysis
Photometric assays - Substrates, Enzymes, Lipid, Protein, Sugar, Inorganic Substances
Setup
Bench top.
Lightsource
Quartz Halogen Lamp, 12V, 20 Watts.
Photometric Range
O - 3 O.D. (Range 340-670nm)
Resolution
0.0001.
Optics
8 wavelength static photometric group with following interference filters: 340, 405, 450, 505, 546, 578, 600, and 670nm.
Half Band Width
9 nm ±2 nm
Detectors
6 UV / VIS Silicon photodiodes.
Cuvette
Unique triple cuvette system:
18 µI flow cell
10 mm rectangular polystyrene cuvette
6 mm round Glass Tube
Thermostat
Peltier temperature control Range 20°C to 40° C with 1 °C steps
Flowcell Volume
18 µI
Sample Aspiration
By means of a peristaltic pump, Aspiration Volume programmable from 100µ1 to 2997µ1.
Precision
Better than 1 % CV.
Keyboard
Rugged water proof, non-tactile legend membrane panel with 25 keys
Smps
EXTERNAL(24V; 60W)
Printer
High resolution, 384 dots per line, thermal type with full graphics facility and option for connecting external USB printer
Display
High-resolution Graphics LCD 240x64 dots, with backlit. View area 134mm x 40 mm.
Interfaces
USB B type port for host computer and USB A type port for External USB DeskJet Printer. External PC/AT keyboard.
Processor
32-bit Cortex M4 Microcontroller.
Memory
Built-in1MB Flash, 136KB SRAM, 16KB EEPROM and 64 KB ROM
Real Time Clock
Built in
Replacable Battery On Pcb
Lithium Battery CR2032 (3V)
Waste Collection
Waste collected in closed container
Incubator (Optional)
16 incubating positions
Operating Temperature
20 °c to40 ° C
Storage Temperature
5 to +45 Degree Celsius.
Humidity
Max.80% RH, non-condensing.
Mains Supply
115/230V AC (±10%), 50/60 Hz (input for power adapter). 446 (W) x 312 (D) x 175 (H) mm.
Mains Supply
115/230V AC (±10%), 50/60 Hz (input for power adapter). 446 (W) x 312 (D) x 175 (H) mm.
Size Instrument
Max.80% RH, non-condensing.
Weight
Approximately 6 kg
