Laura
This is a fast, simple and efficient solution for laboratories with medium to high workload.
Laura
This is a fast, simple and efficient solution for laboratories with medium to high workload.

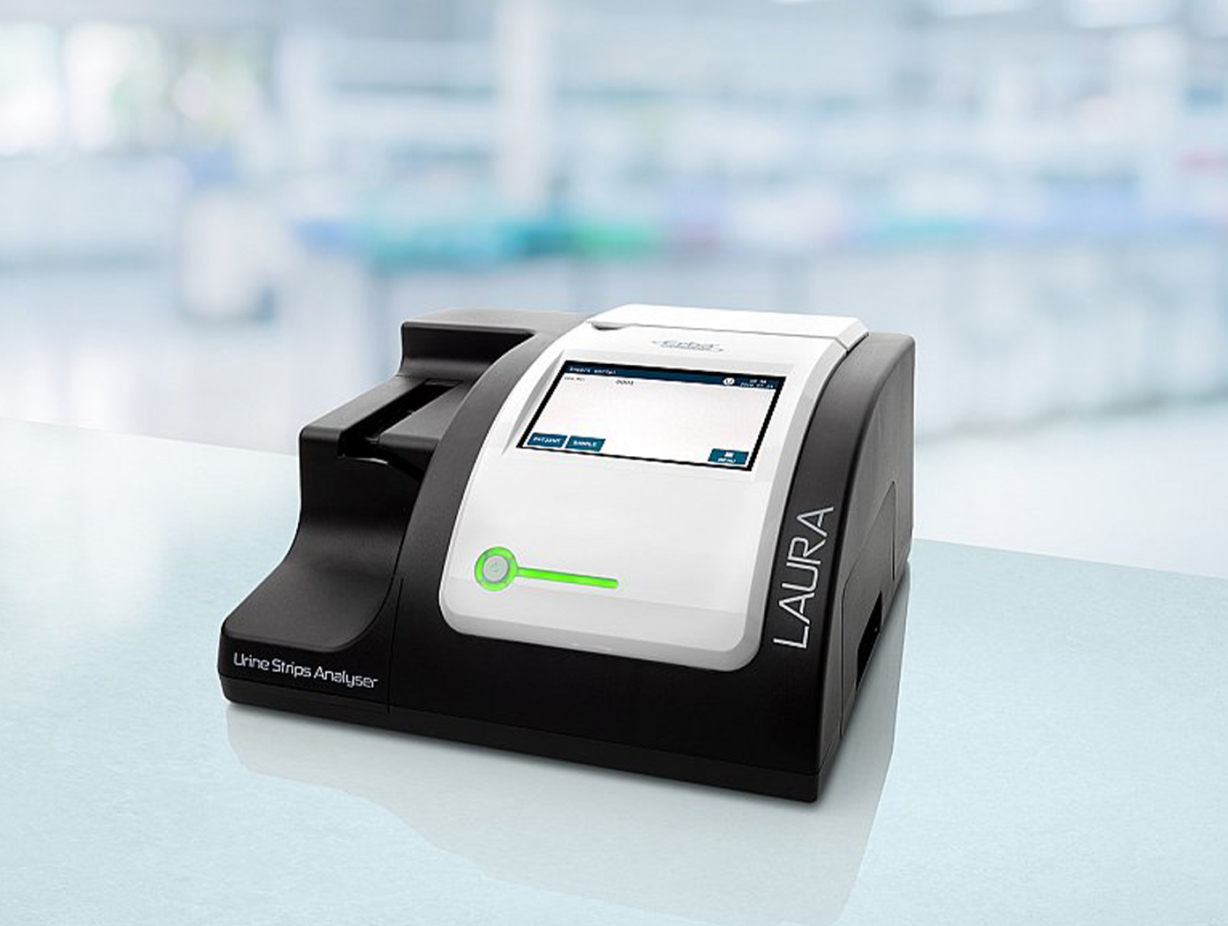

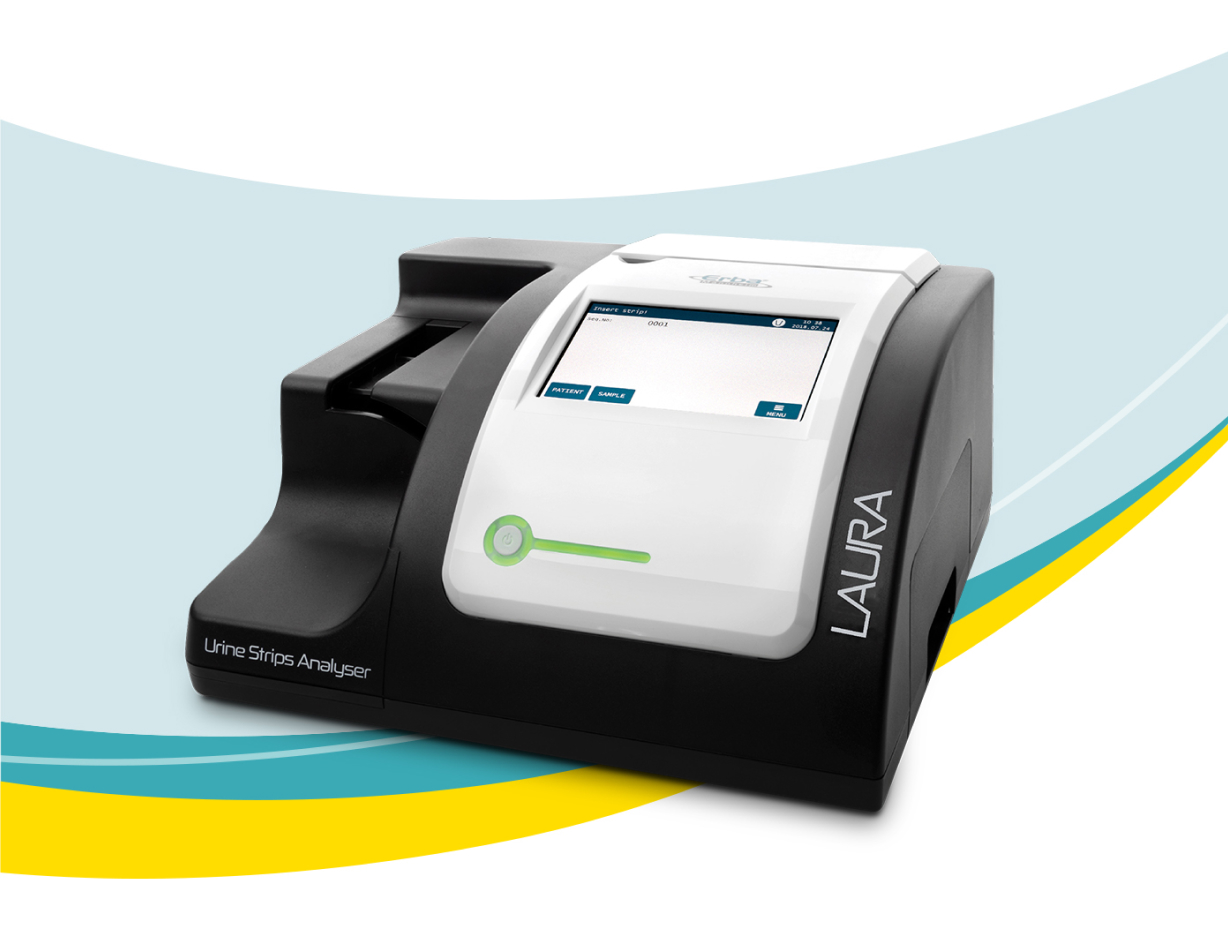

Meet the Laura
Product Specifications
High Throughput
High throughput: 400 test/hr
Your Benefit:
Continuous loading facility with Multiple test strips(MicroalbuPhan & DekhaPhan) reading
QC Management
- QC Reminder
- QC Lockout
- QC Reminder
- QC Lockout
Your Benefit:
Two new functions ensures superior QC performance:
Container
Attached waste container
Your Benefit:
Minimizes biohazard
Result Flagging
Abnormal results flagging
Your Benefit:
Helps clinician to recommend for further analysis
Calibration & Maintenance
Self Calibration & simple maintenance
Your Benefit:
provides a convenient test solution
Automated reading of Urine test strips that avoids subjective errors in visual reading
Technical Specifications
System
Continuous loading Semi-automated Urine test strip analyzer
Type
Reflectance photometer
Measuring System
Wavelengths – 460 nm, 530 nm, 610 nm
Memory
1000 results
Throughput
400 tests /hr
Reaction Mixing
LCD touchscreen (800 x 480 pixel)
Printer
Built-in Thermal Printer
Certificates
CE

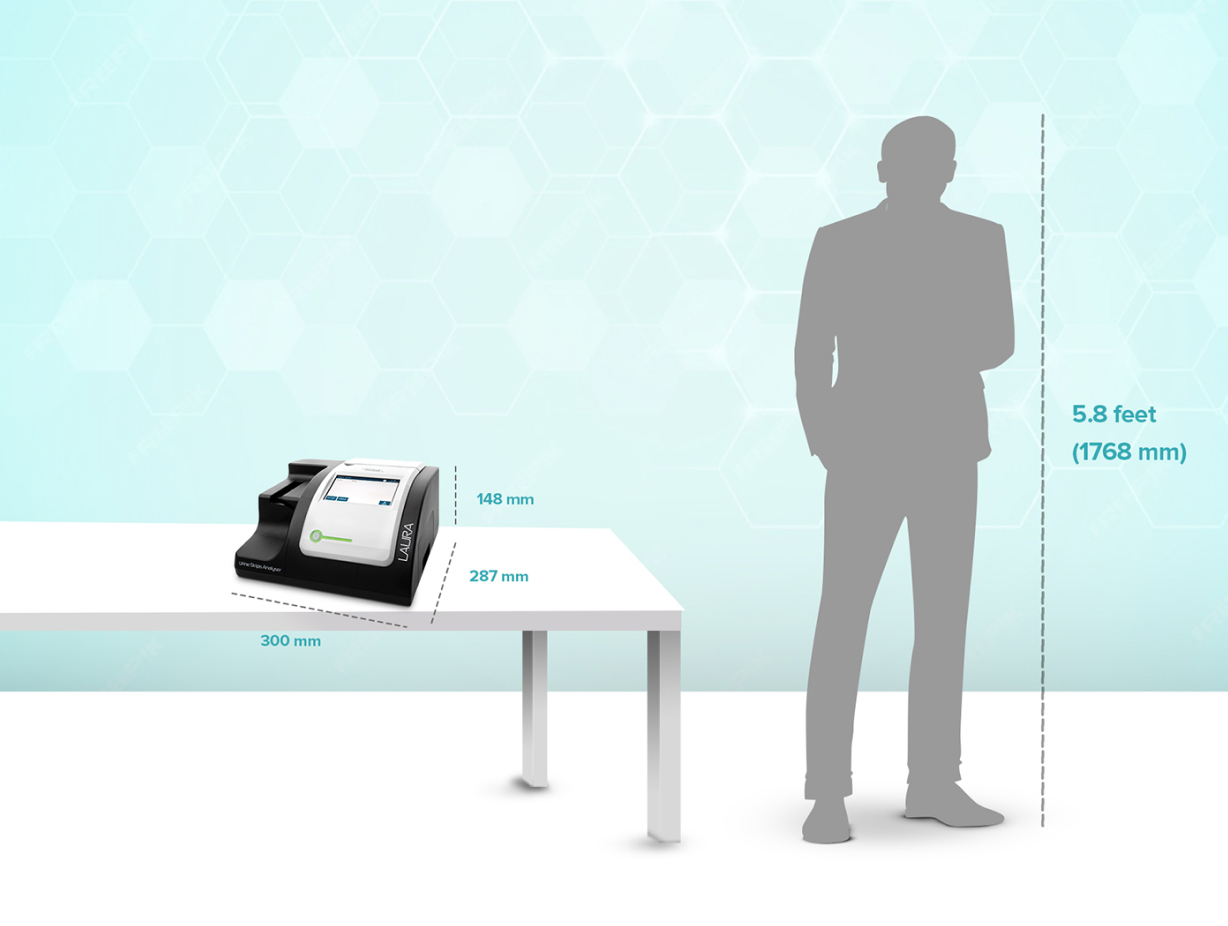

Physical Dimensions
300 x 287 x 148 mm
Weight
3.2 Kg

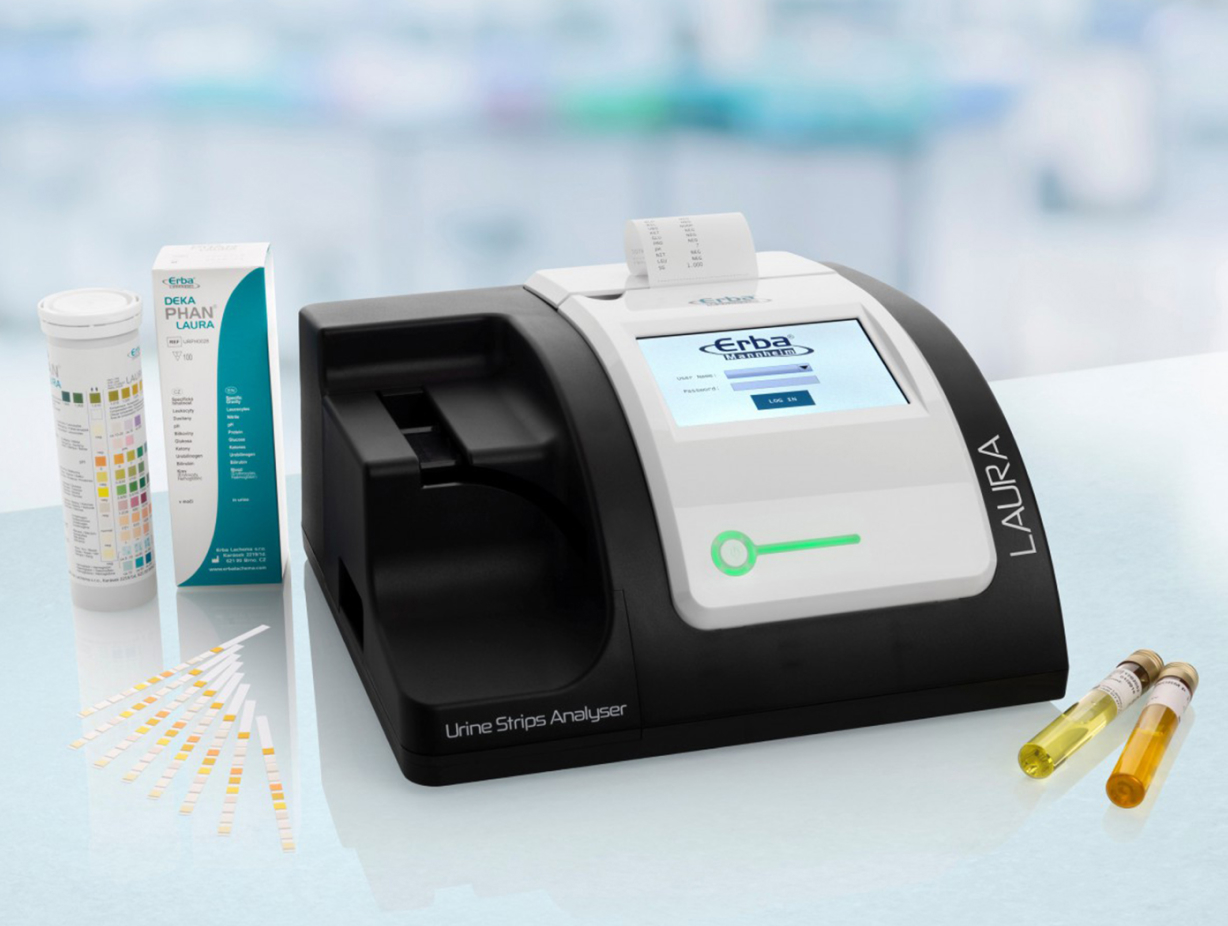

Test Strips
DekaPHAN Laura & MicroalbuPHAN Laura
Parameters
Specific Gravity, Leucocytes, Nitrite, pH, Protein, Glucose, Ketone, Urobilinogen, Bilirubin, Blood & Microalbumin, Creatinine
Optical QC
Grey QC strip
System Interface
Communication via RS232 & USB port
Host Protocol
Uni-directional
Sample Identification
Sample ID via keyboard entry, barcode reader
Power source
AC 100-240V/50-60 Hz
Power Consumption
≤45 W
System General
System Type
Discrete, automated, random access, patient prioritized, clinical chemistry analyzer, 1,2, 3 reagent system
Throughput
Upto 1040 tests/hr (800 tests/hr) photometric and 240 tests/hr with ISE (4 Channel)*
Analytical Methods
1-Point, 2-Point, Rate-A, Rate-B, Direct Potentiometry
Barcode Reader
For reagents and samples
Reaction Tray
147 hard glass cuvettes
Reaction Mixing
Stirrer with variable speed
Reading Volume
Reaction volume 150 ul
On-board Laundry
7 stage cleaning, 2 stage drying
Photometer
Multi-wavelength diffraction grating with 15 wavelengths (340, 376, 405, 450, 480, 505, 528, 546, 570, 600, 628, 660, 700, 750 and 800 nm)
Calibration
K-Factor, Linear (1, 2 point & multipoint), 4P and SP Logit-log, cubic spline, exponential, polynomial. On-board serial dilution for calibrator
OD Range
0.0 - 3.0
Light Source
Tungsten halogen lamp
Detector
Silicon photo-diode
Water Consumption
<25 litres /hr
Programmable Parameters:
Default system pack parameters + upto 99 user defined parameters, Unlimited profiles and unlimited calculation items
Quality Control
QC plot data with QC rules. Provision for lab mean. Twin plot
Power Requirement
AC220V± 10%,50 Hz or AC 110 V± 10%, 60 Hz
Power Consumption
2000VA.
Dimensions (mm)
Approx . 1350 (L) x 1000 (D) x 1250 (H)
Weight
Approx . 275 kgs.
Sample Handling
Sample
Serum, Urine, Plasma, CSF, whole blood, other.
Standard / STAT Carousal
44 positions
Sample Rack
Upto 150 samples can be placed simultaneously (excluding standards, calibrators & controls)
Sample Pipetting
2 -60 µl (adjustable in 0.1 µIstep) for Biochemistry, 70 µl (fixed) for ISE Capacitance probe with level sensing, vertical obstruction detection, Clot detection and serum indices
Auto Rerun
Repeat with same, increased or decreased volume (upto 1:150)
Sample Tubes/ Cups
Primary tubes of 5 ml, 7 ml, 10 ml and sample cups
Reagent Handling
Reagent Tray
86 reagent positions with on-board refrigeration
Reagent Pipetting
Two separate probes for Rl, R2 & R3 Rl:60-300 µl (adjustable in 0.5 µl)
R2
0, or 10- 200 µl (adjustable in 0.5 µl)
R3
0, or 10- 200 µl (adjustable in 0.5 µl) Capacitance probe with liquid level sensing & vertical obstruction detection
System Interface
Analyzer - PC
RS - 232 C Serial Port PC - Host
Computer
Bidirectional TCP/IP & RS-232
PC - Printer
USB
Operating system
Windows-based
Database
Unlimited results
