Chem 7
Semi Automated Clinical Chemistry Analyzer
Chem 7
Semi Automated Clinical Chemistry Analyzer

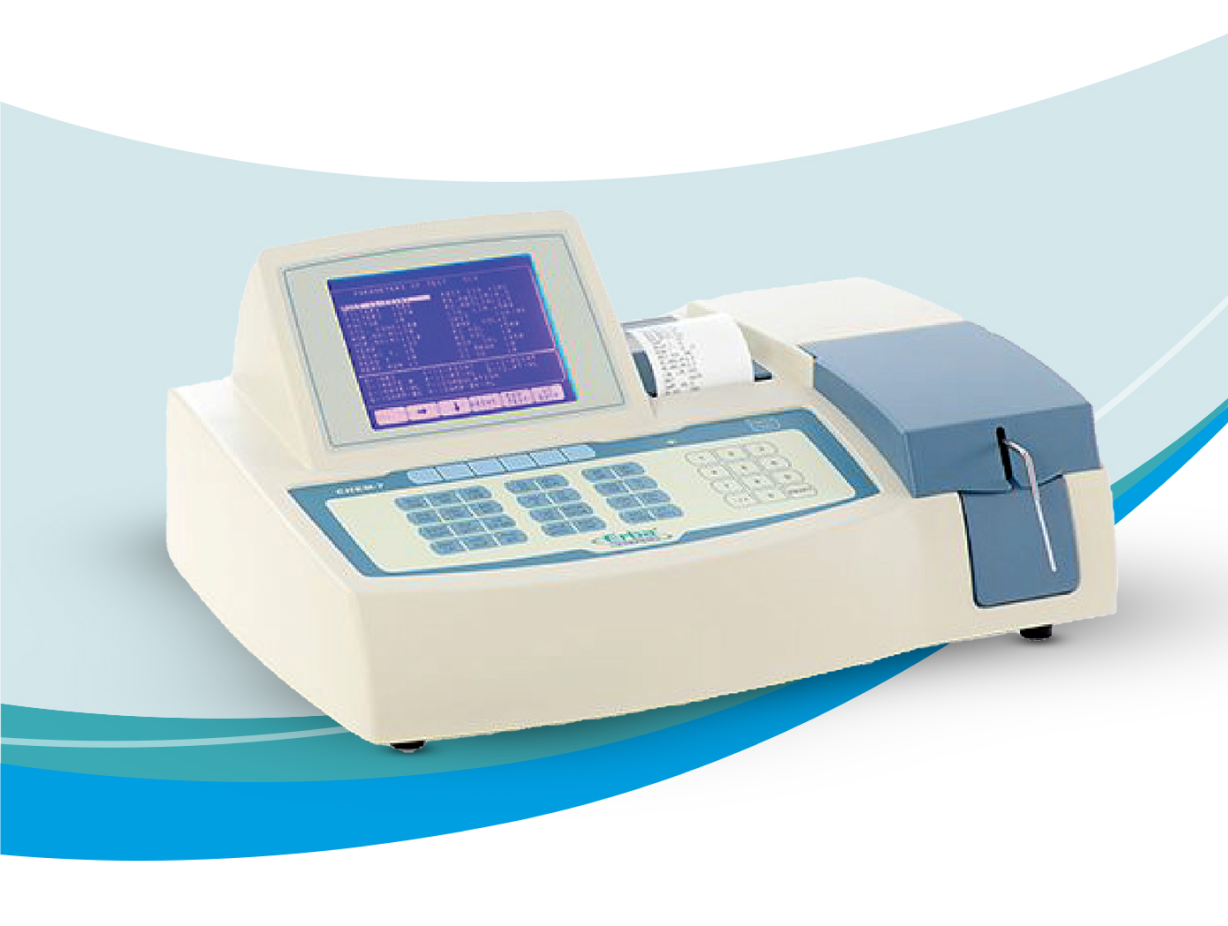

Meet the Chem 7
An advanced & versatile semi automated analyzer for all Clinical chemistry, Electrolytes, Immunoturbidimetric assays and Coagulation test
Product Specifications
Keys
56 direct access keys for user friendly operations
Your Benefit:
Better Turnaround time (TAT)
Cuvette System
Unique Triple Cuvette system
Your Benefit:
Addresses various types of chemistry tests with precision
Cuvette Volume
18 μL flow cell
Your Benefit:
Ensures low reagent consumption with better Cost Per Test (CPT)
Photometer
Static photometer with 8 IAD filters
Your Benefit:
Ensures precision for longer time with zero fungal growth
Assay modes
9 assay mode + Special Coagulation mode
Your Benefit:
To perform PT, APTT and other factors
Lamp Saving Feature
Auto Lamp life saving feature Online Graph and Result Recalculation
Your Benefit:
Better life span and optimise usage of the lamp, precise kinetic readings with reagent Rerun cost saving
End Point Reactions: Glucose, Cholesterol, Triglycerides, Albumin, Total Protein, Uric Acid, Calcium, Magnesium, Bilirubin Total, Bilirubin Direct
Kinetic Reactions: SGOT, SGPT, GGT, LDH, CK, CK MB, ALP, ACP, Amylase, Lipase
Two Point Rate Reactions: Urea, Creatinine
Immunoturbidimetric Chemistries: RA, CRP, ASO, Direct HDL, Direct LDL, Apo A, ApoB, Lp (a)
Special Chemistries: HbA1c, Iron, Ferritin, Phosphorus, Microprotein, Ammonia, Bicarbonates
Technical Specifications
Optical Module
- Static photometer with photometric range (340-670)
- 8 Interference filters 340, 405, 450, 505, 546, 578, 600 and 670 n.m.
- Silicon photodiode detectors
- Photometric range from 0 to 3.0 OD
- Quartz Halogen lamp of 12V, 20W
Measuring Module:
- Unique Triple cuvette system
- 18 µl Flow cell
- 10 mm Square cuvette
- 6 mm Round glass tube with adaptor
- Peltier temperature control: 20°C-40°C in steps of 1°C
- Peristaltic Pump
- Minimum aspiration volume 200 µl
Analysis Modes
- 1-point linear
- Rate A non-linear
- 2-point linear
- 1-point sample blank linear
- 1-point non-linear
- 1-point sample blank non-linear
- 2-point non-linear
- Absorbance
- Rate A linear
- Coagulation
Memory
- 260 User defined test programs
- 10,000 test result
- Reagent Blank
- 3 Levels of QC
Result Recall
- Collated Reports by Date, ID, Date & ID
- Test & Date wise
- Patient Demographics
Built-in QC
Daily and monthly monitoring for 3 Levels Levy-Jenning QC graphs
Display
- High resolution graphics LCD with backlight.
- View Area: 120 x 92 mm
Keyboard
41 Multifunction Keys and 6 dynamic keys
Printer
In built high resolution graphic thermal printer
Interface
- USB connectivity to PC
- Direct printer connectivity through USB port
- Port for External keyboard
Power
External Universal SMPS adapter 18V DC, 70W, 115/230V AC (± 10%), 50/60 Hz
Size
(mm): 205 (H) x 450 (W) x 300(D)
Weight
Approx. 7 Kgs.
Optional Accessories
External 16 Position Dry Block Incubator
