XL 1000
Fully Automated Clinical Chemistry Analyzer
XL 1000
Fully Automated Clinical Chemistry Analyzer

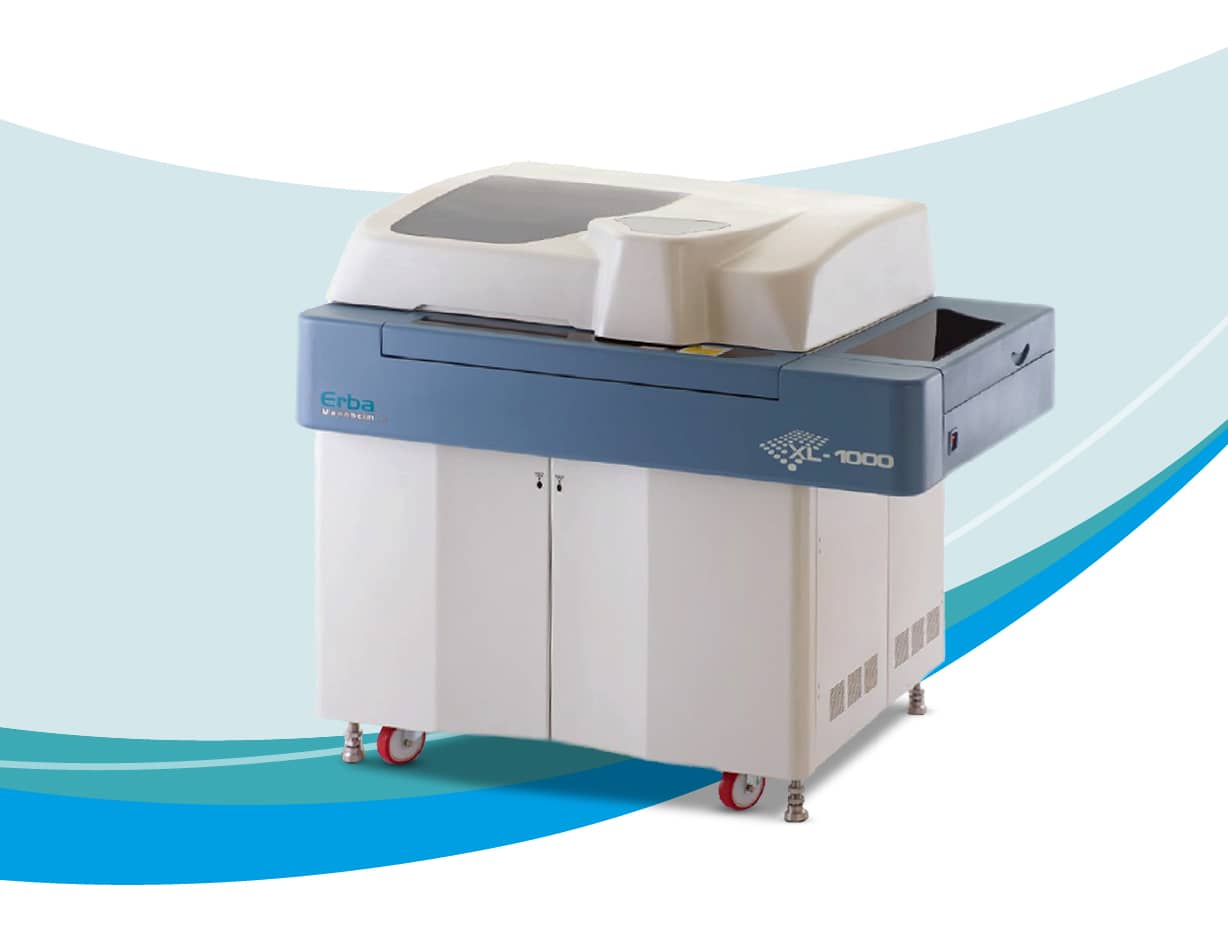

Meet the XL 1000
XL 1000 with the throughput of upto 1040 tests per hour is the ideal instrument for centralizing the complete biochemistry testing load on a single fully automated platform. Increased walk away productivity and less human intervention make it an apt analyzer for large laboratories.
Equipped with all necessary advanced features that one expects from a high end fully automated chemistry analyzer, e.g, sample loading through rack system, Cooled calibrator and control carousal, low reading volume of 150 µl only, Diffraction grating with 15 wavelengths from 340 nm to 800 nm, user-friendly software etc. to optimize and run the daily workload. XL 1000 is a dream come true piece of electronic workhorse for laboratories and the perfect solution. XL 1000 is a dependable partner and unique in its own to meet with the tight deadlines for increasing workload.
Product Specifications
Throughput
800 tests / hour photometric and 1040 tests/hour with ISE* (*optional ISE with Na+, K+, Cl-, Li+)
Your Benefit:
Manages workload of 300-600 samples per day
Multipositional
86 Cooled reagent positions and 150 Sample Positions along with additional 44 positions for STAT
Your Benefit:
Provides flexibility to perform any parameters at a time which improves TAT
VersaSpectra
Multi Wavelength Diffraction grating photometer with 15 wavelengths
Your Benefit:
Ensures accurate readings
CuvetteEase
147 Permanent Hard Glass Cuvettes with on board laundry and 150 µl reaction volume
Your Benefit:
Reduces CPRT and ensures zero
operational cost
ProbeCare
Separate reagent probes for R1, R2 and Sample with internal external washing
Your Benefit:
Reduces carryover
IndexTrace
Inbuilt clot detection and Serum indices identification with Reflex testing
Your Benefit:
Ensures sample integrity saving time and reagent costs by avoiding test reruns
System Pack
Inbuilt clot detection and Serum indices identification with Reflex testing
Your Benefit:
Routine as well as specialised Barcoded reagents packs common for all Erba FAA
All routine Clinical Chemistries
Specialized chemistries like HbA1c, ADA, Apo A1, Apo (B), Lp (a)
Immunoturbidimetric Assays like ASO, RF, CRP, HbA1c etc.
Therapeutic Drug Monitoring Tests
System General
System Type
Discrete, automated, random access, patient prioritized, clinical chemistry analyzer, 1,2, 3 reagent system
Throughput
Upto 1040 tests/hr (800 tests/hr) photometric and 240 tests/hr with ISE (4 Channel)*
Analytical Methods
1-Point, 2-Point, Rate-A, Rate-B, Direct Potentiometry
Barcode Reader
For reagents and samples
Reaction Tray
147 hard glass cuvettes
Reaction Mixing
Stirrer with variable speed
Reading Volume
Reaction volume 150 ul
On-board Laundry
7 stage cleaning, 2 stage drying
Photometer
Multi-wavelength diffraction grating with 15 wavelengths (340, 376, 405, 450, 480, 505, 528, 546, 570, 600, 628, 660, 700, 750 and 800 nm)
Calibration
K-Factor, Linear (1, 2 point & multipoint), 4P and SP Logit-log, cubic spline, exponential, polynomial. On-board serial dilution for calibrator
OD Range
0.0 - 3.0
Light Source
Tungsten halogen lamp
Detector
Silicon photo-diode
Water Consumption
<25 litres /hr
Programmable Parameters:
Default system pack parameters + upto 99 user defined parameters, Unlimited profiles and unlimited calculation items
Quality Control
QC plot data with QC rules. Provision for lab mean. Twin plot
Power Requirement
AC220V± 10%,50 Hz or AC 110 V± 10%, 60 Hz
Power Consumption
2000VA.

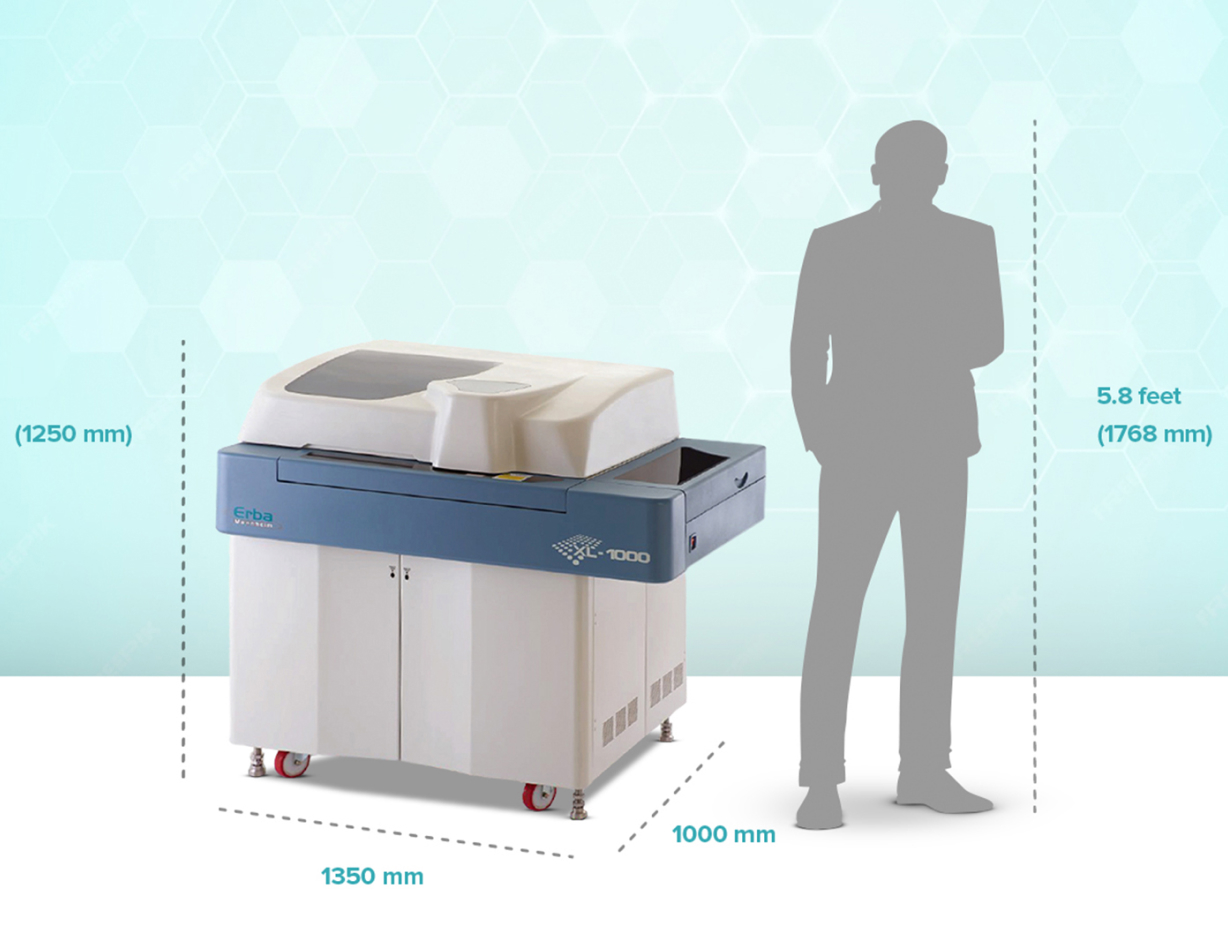

Dimensions (mm)
Approx . 1350 (L) x 1000 (D) x 1250 (H)
Weight
Approx . 275 kgs.
Sample Handling
Sample
Serum, Urine, Plasma, CSF, whole blood, other.
Standard / STAT Carousal
44 positions

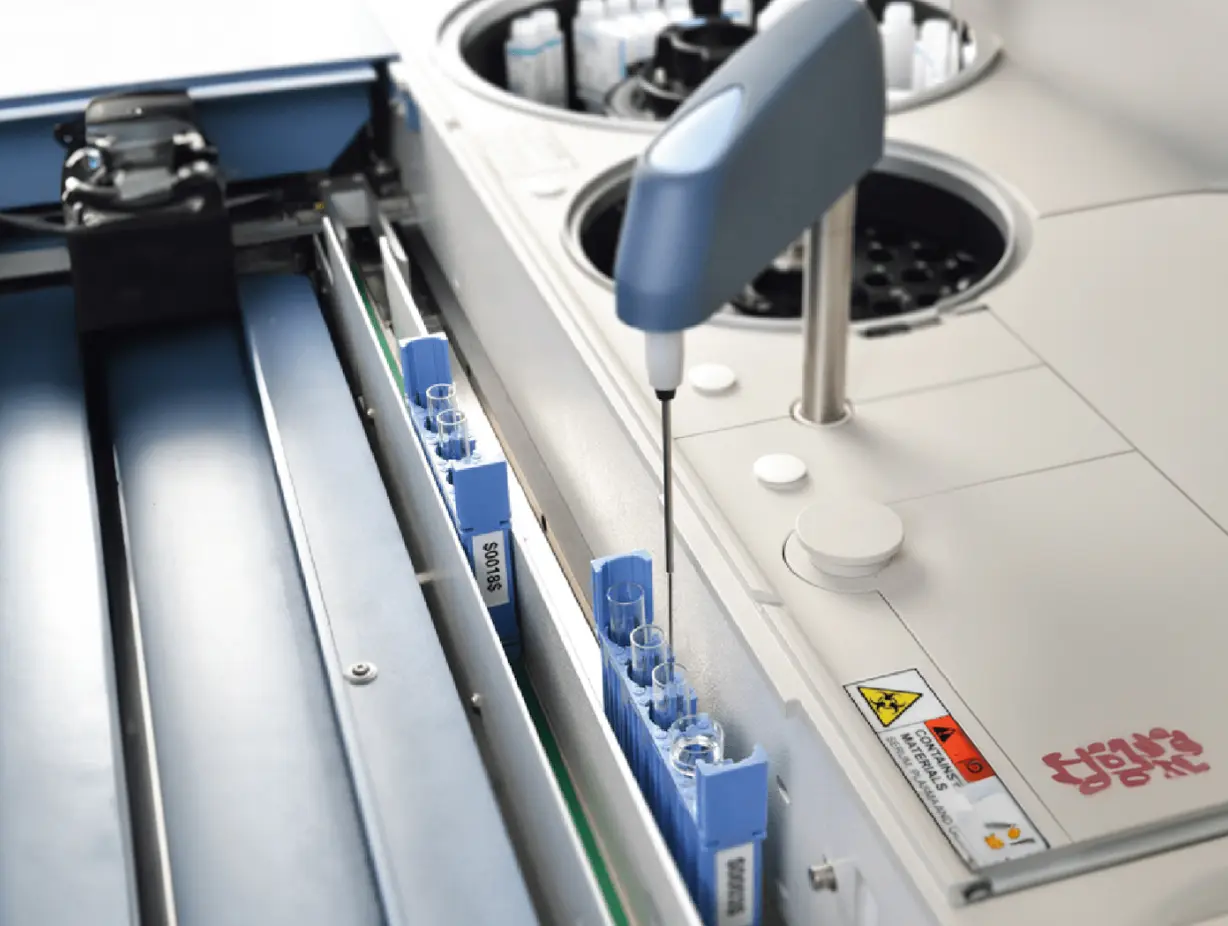

Sample Rack
Upto 150 samples can be placed simultaneously (excluding standards, calibrators & controls)
Sample Pipetting
2 -60 µl (adjustable in 0.1 µIstep) for Biochemistry, 70 µl (fixed) for ISE Capacitance probe with level sensing, vertical obstruction detection, Clot detection and serum indices
Auto Rerun
Repeat with same, increased or decreased volume (upto 1:150)
Sample Tubes/ Cups
Primary tubes of 5 ml, 7 ml, 10 ml and sample cups
Reagent Handling

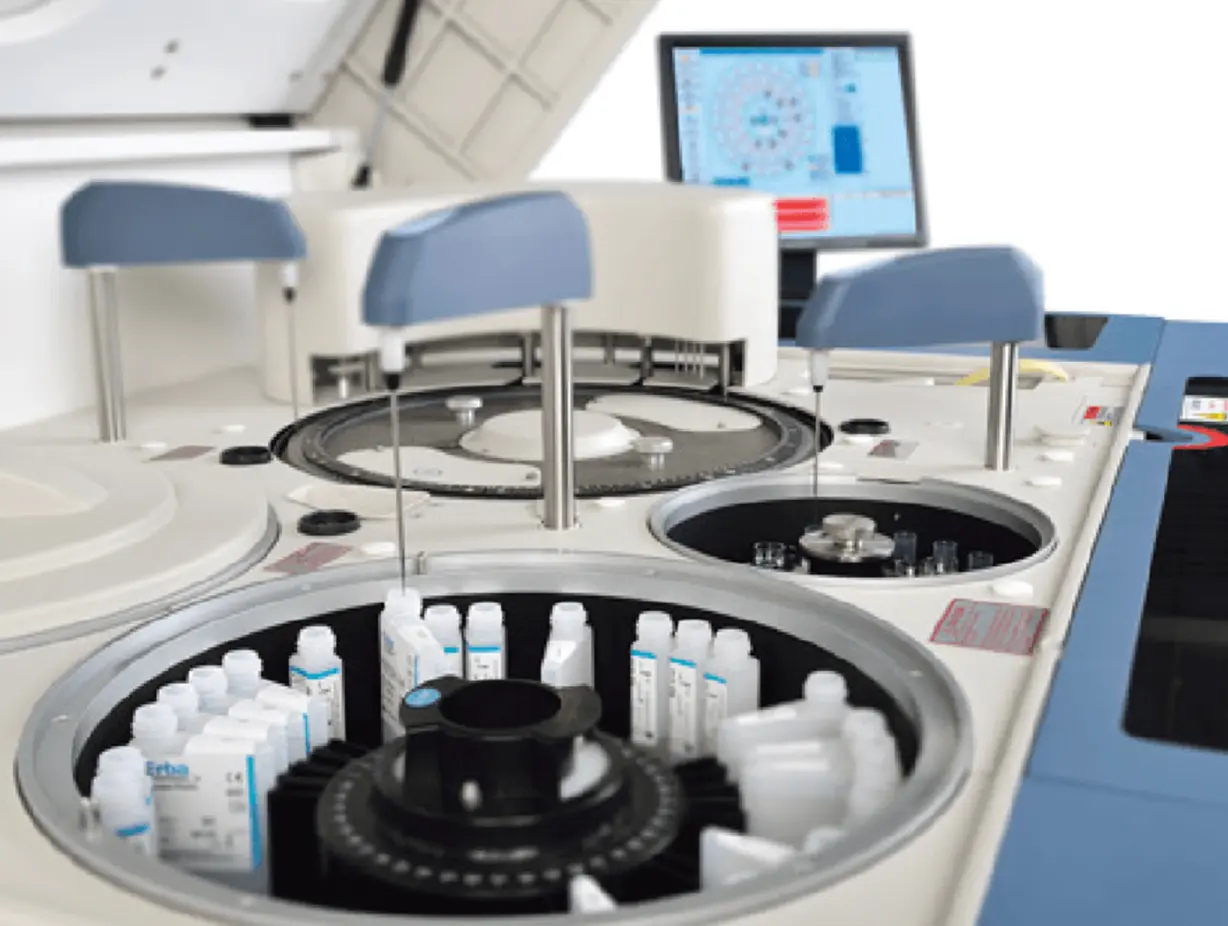

Reagent Tray
86 reagent positions with on-board refrigeration
Reagent Pipetting
Two separate probes for Rl, R2 & R3 Rl:60-300 µl (adjustable in 0.5 µl)
R2
0, or 10- 200 µl (adjustable in 0.5 µl)
R3
0, or 10- 200 µl (adjustable in 0.5 µl) Capacitance probe with liquid level sensing & vertical obstruction detection
System Interface
Analyzer - PC
RS - 232 C Serial Port PC - Host
Computer
Bidirectional TCP/IP & RS-232
PC - Printer
USB
Operating system
Windows-based
Database
Unlimited results
What is the throughput of XL 1000?
800 Tests/Hour Photometric & 1040 tests/hour with ISE
Which type of Cuvettes are used in XL 1000?
Permanent Hard Glass Cuvettes. Glass cuvettes provide excellent optical clarity, allowing accurate and precise measurement, their reusability and durability make them cost effective over time, reducing the need of frequent replacement.
What is the advantage of grating photometry?
Grating Photometer provides accurate measurements, improved sensitivity and more test options due to 15 adjustable wavelengths.

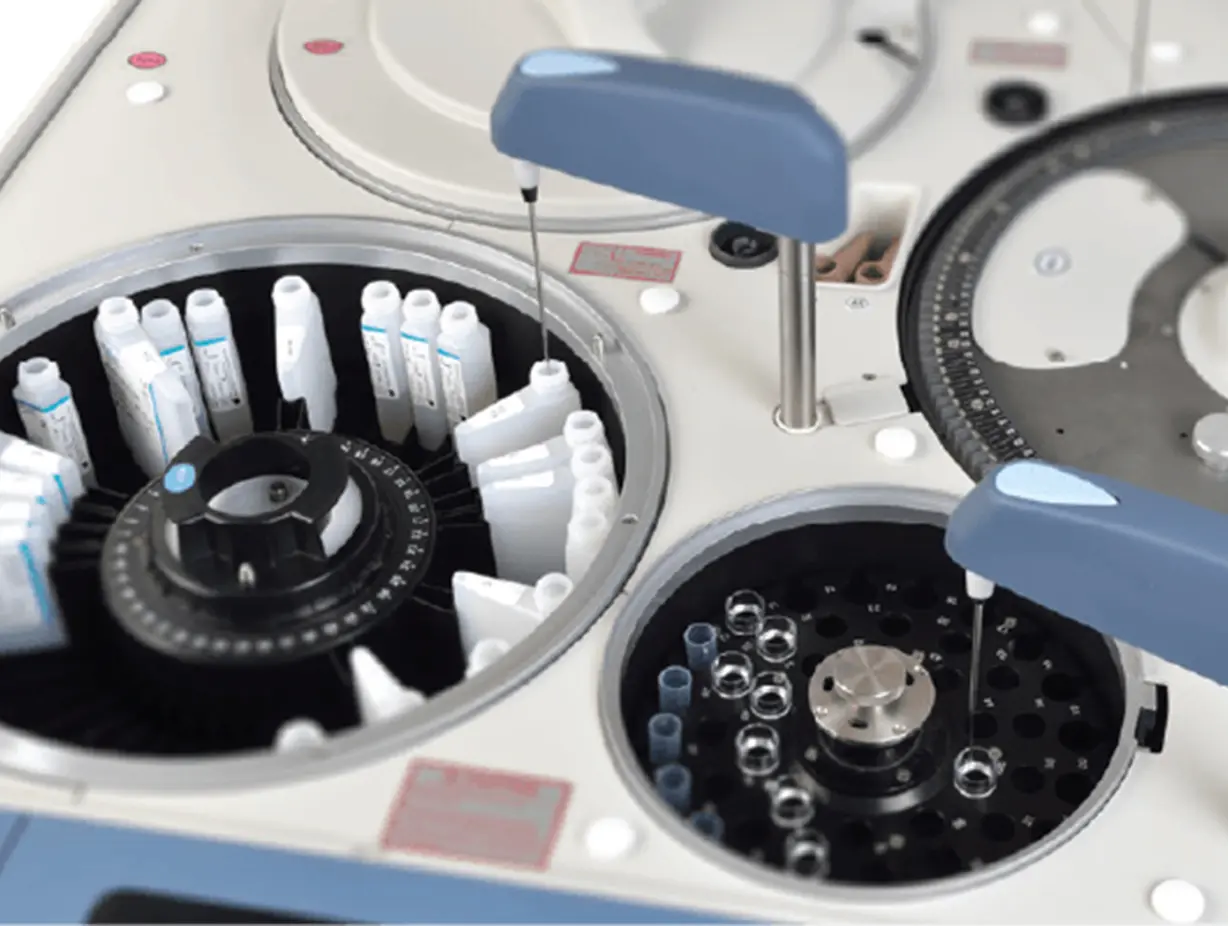

How many reagent and sample positions are available in XL 1000?
86 reagent and 150 sample positions with additional 44 position tray for STAT, Controls & Calibrators are available in XL 1000
How many STAT positions are there in XL 1000?
In XL 1000 44 Position separate carousel is available for STAT position
What is the water consumption of XL 1000?
XL 1000 has water consumption of 25 ltrs/hour
XL 1000 is which type of model?
XL 1000 is a floor type fully automated clinical chemistry analyzer.
How many probes are there in XL1000
Trilateral probe system. 2 reagent & 1 sample probe.
How many mixer are there in XL 1000?
4 mixing probes are available in XL 1000
What are the Probe Mechanics used in XL 1000?
Vertical obstruction detection, Capacitance based liquid level sensing, Clot Detection & Froth detection.
How is the laundry system in XL 1000?
XL 1000 has 10 step Twin laundry system.
What is Reflex testing used for?
Reflex testing reduces the need for manual intervention and decision making by laboratory staff, streamlining testing processes and reducing turnaround times for critical results, which is especially beneficial in emergency or time sensitive situations.
Does XL 1000 comes with Serum Indices and What is serum Indices used for?
Yes, Automated detection and reporting of serum indices streamline laboratory workflows by minimizing the need for manual inspection and assessment of sample quality, reducing turnaround times and increasing overall laboratory efficiency..
What other clinical products are available at Transasia?
A wide range of equipment and reagents for product segments ranging from semi-automatic clinical chemistry analyzer, fully automated clinical chemistry analyzer, three-part hematology analyzer, five part hematology analyzer, High end five part hematology analyzer, CLIA, ELISA Reader & Washer, Critical care, Urine analysis, Hemostasis and HPLC are available at TBM.
