XL 200
XL 200 is a fully automated, random access and discrete clinical chemistry analyzer that enhances productivity and turnaround time
XL 200
XL 200 is a fully automated, random access and discrete clinical chemistry analyzer that enhances productivity and turnaround time
Meet the XL 200
Product Specifications
Throughput
Throughput: 200 tests / hour photometric and 400 tests / hour with ISE* (*optional ISE with Na+, K+, Cl-, Li+)
Your Benefit:
Manages workload of 45 – 100 samples/day
Multipositional
Dedicated carousel for 39 sample positions and 50 reagent positions with onboard laundry
Your Benefit:
Ensures precise results and better stability of reagents and samples
VersaSpectra
Multi Wavelength Diraction grating photometer with 15 wavelengths
Your Benefit:
Ensures accurate readings
Touch Display
Integrated touch screen display with all new GUI
Your Benefit:
Enhances user-friendliness of the system
Reflex Testing
User defined reflex testing
Your Benefit:
Ensures confirmation of abnormal results with auto testing of additional parameters, resulting in saving time & costs.
Sample Integrity Check
In-built clot detection
Your Benefit:
Ensures sample integrity saving time and reagent wastage
Bar Code Reader
In built bar code reader for sample and reagents
Your Benefit:
Transforms the instrument into a genuine walk-away system
End Point Reactions: Glucose, Cholesterol, Triglycerides, Albumin, Total Protein, Uric Acid, Calcium, Magnesium, Bilirubin Total, Bilirubin Direct
Kinetic Reactions: SGOT, SGPT, GGT, LDH, CK, CK MB, ALP, ACP, Amylase, Lipase
Two Point Rate Reactions: Urea, Creatinine
Immunoturbidimetric Chemistries: RA, CRP, ASO, Direct HDL, Direct LDL, Apo A, ApoB, Lp (a)
Special Chemistries: HbA1c, Iron, Ferritin, Phosphorus, Microprotein, Ammonia, Bicarbonates
System General
Throughput
200 photometric tests/hour & 400 tests/hour with ISE (Optional)
Reagent Positions
50 cooled reagent positions
Sample Type
Whole blood, Serum, Plasma, Urine, CSF other Reading Volume: 180 µl
Sample Volume
2-70 µl (Adjustable in 0.1 µl) with clot detection and Reflex testing
Reagent Volume
10-300 µl (Adjustable in 1 µl)
Light Source
Halogen lamp
On-board Laundry
6 stage cleaning, 2 stage drying with Cuvette validation step
Calibration Type
Linear, Non-Linear, Multipoint
Programmable Parameters
Default system pack parameters + upto 10% user defined parameters

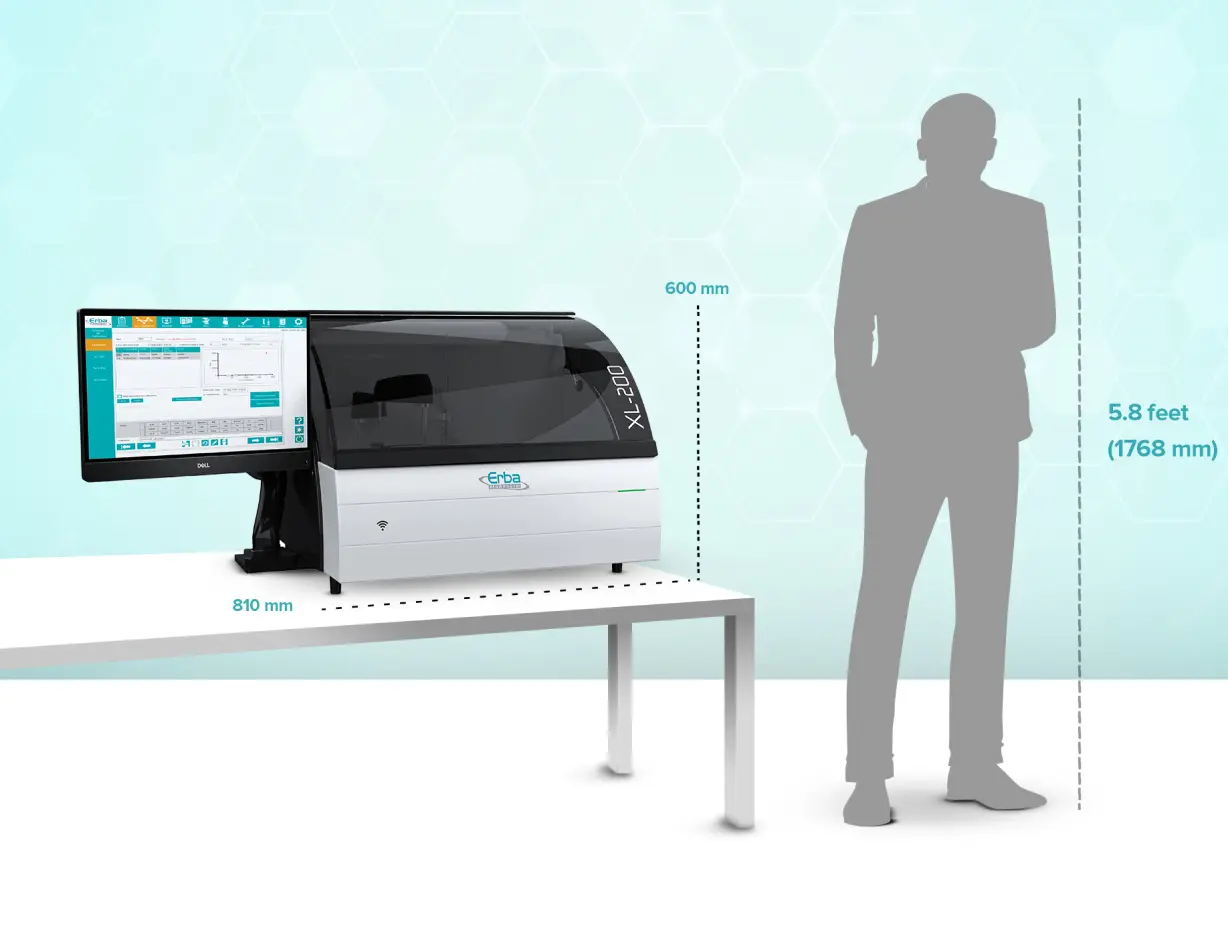

Dimensions
810 (W) x 800 (D) x 600 (H) mm
Weight:
Approximately 120 Kg
Sample Handling
Sample
Serum, Plasma, Urine, CSF, Whole blood, other
Standard / STAT Carousal
39 positions
Sample Pipetting
2 -60 µl (adjustable in 0.1 µIstep) for Biochemistry, 70 µl (fixed) for ISE Capacitance probe with level sensing, vertical obstruction detection, Clot detection and serum indices
Auto Rerun
Repeat with same, increased or decreased volume (upto 1:150)
Sample Tubes/ Cups
Primary tubes of 5 ml, 7 ml, 10 ml and sample cups
Sample Rack
Upto 39 samples can be placed simultaneously (excluding standards, calibrators & controls)
Reagent Handling
Reagent Tray
50 reagent positions with on-board refrigeration
Reagent Pipetting
Single probe for Rl, R2 & R3 Rl:60-300 µl (adjustable in 0.5 µl)
Reaction Volume
0, or 10- 250 µl (adjustable in 0.5 µl)
Probe Mechanism
Capacitance probe with liquid level sensing & vertical obstruction detection
System Interface
Analyzer - PC
RS - 232 C Serial Port PC - Host
Computer
Bidirectional TCP/IP & RS-432
PC - Printer
USB
Operating system
Windows based with Touch Screen User Friendly GUI
Database
Unlimited results
IOT
Improved professional efficiency
