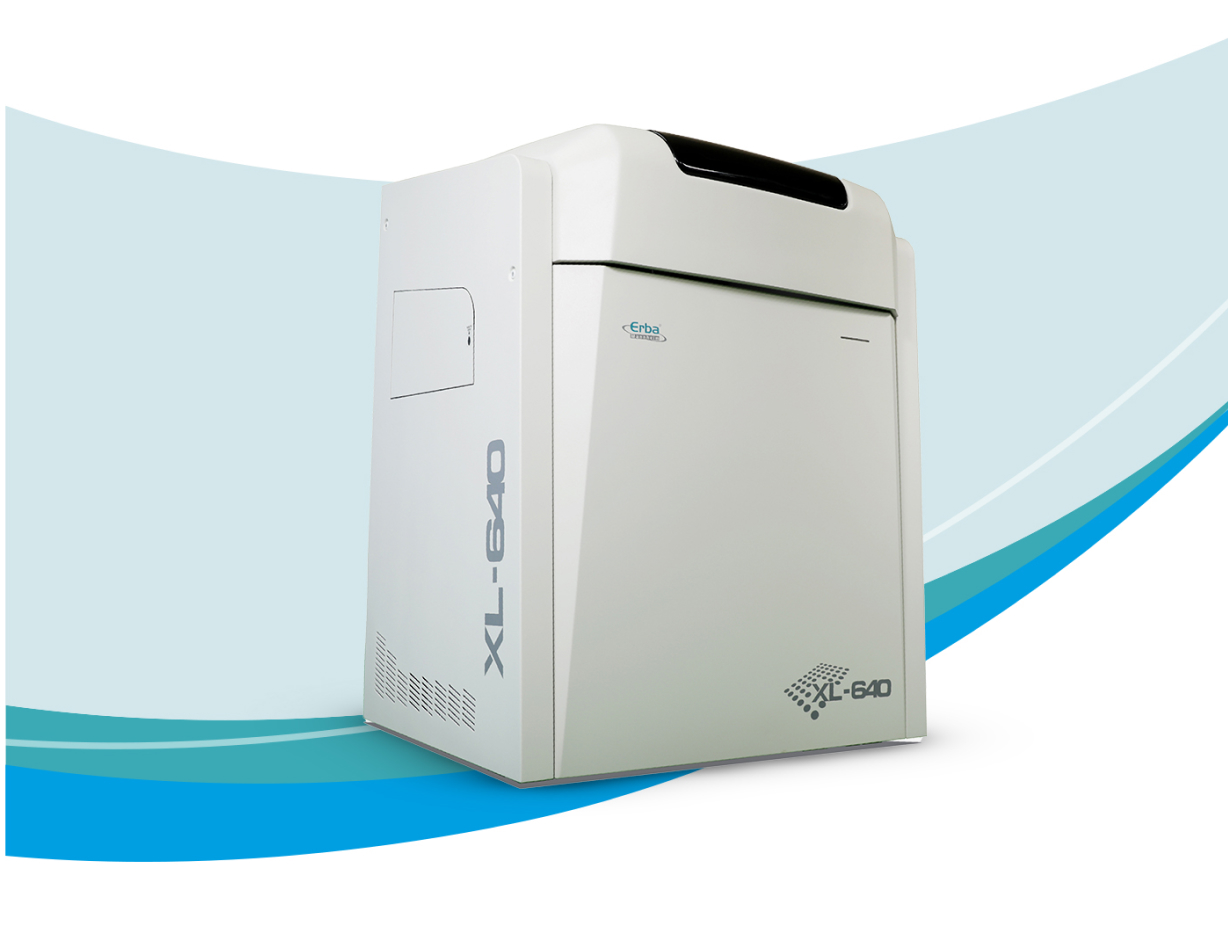

XL 640
Fully Automated Clinical Chemistry Analyzer
XL 640
Fully Automated Clinical Chemistry Analyzer
Meet the XL 640
Product Specifications
Throughput
Throughput: 400 tests / hour photometric and 640 tests / hour with ISE*
Your Benefit:
Manages workload of 200-400 samples per day
Reagents & Sample tray
56 Cooled reagent positions and 160 Sample positions with continuous sample loading autoloader
Your Benefit:
Provides flexibility to perform many parameters at a time which improves TAT
Reaction tray
72 Permanent Hard Glass Cuvettes with on board laundry and 180 µl reaction volume
Your Benefit:
Reduces CPRT and ensures zero operational cost
Photometer
Multi Wavelength Diffraction grating photometer with 12 wavelengths
Your Benefit:
Ensures accurate test results
Probe
Separate reagent probes for R1, R2 and Sample with internal external washing
Your Benefit:
Reduces carryover
Special Feature
Inbuilt clot detection and Serum indices identification with Reflex testing
Your Benefit:
Ensures sample integrity saving time and reagent costs by avoiding test reruns
Reagents
Dedicated System pack
Your Benefit:
Routine as well as specialised Barcoded reagents packs common for all Erba FAA
Substrates: Albumin, Bicarbonate, Bilirubin Direct, Bilirubin Total, Calcium, Cholesterol, Creatinine, Glucose, Phosphorus, Total Protein, Triglycerides, Urinary Protein, Urea, Uric Acid, Phospholipids, Microprotein, Myoglobin, Microalbumin
Enzymes: ACP, ALP, α Amylase, CHE, CK, CK-MB, GGT, GOT (AST), GPT (ALT), HBDH, LDH
ISE: Sodium, Potassium, Chloride
Immunoturbidimetric Assays: ApoA1, ApoB, ASO, CRP, Ferritin, HbA1c,RF, Transferrin,HDL Cholesterol, LDL Cholesterol
System General
System Type
Automated, Discrete, Random Access, Patient Prioritized Clinical Chemistry Analyzer
Throughput
400 photometric tests/hour & 640 tests/hour with ISE (*optional ISE with Na, K, Cl, Li)
Analytical Methods
1-Point, 2-Point, Rate-A, Rate-B, Direct Potentiometry(optional)
Barcode Reader
Both for Samples & Reagents (Optional)
Reaction Tray
72 hard glass cuvettes
Reaction Mixing
Stirrer with variable speed
Reading Volume
Reaction volume 180 ul
On-board Laundry
6 stage cleaning, 2 stage drying
Photometer
Multi-wavelength diffraction grating with 12 wavelengths (340, 376, 415, 450, 480, 505, 546, 570, 600, 660, 700 & 750 nm)
Calibration
K- factor, Linear (1,2 point and multipoint) 4P and 5P Logit-log, Cubic spline,exponential, polynomial. On-board serial dilution for calibrator
OD Range
0.0 - 3.0
Light Source
Halogen Lamp
Detector
Silicon Photodiodes
Water Consumption
< 14 liters/hour
Programmable Parameters:
Default system pack parameters + upto 99 user defined parameters, Unlimited profiles and unlimited calculation items
Quality Control
Q.C. plot data with Q.C. Rules. Provision for lab mean. Twin plot.
Power Requirement
AC 220 V ± 10 %, 50 Hz orAC 110 V ± 10 %, 60 Hz
Power Consumption
800 VA

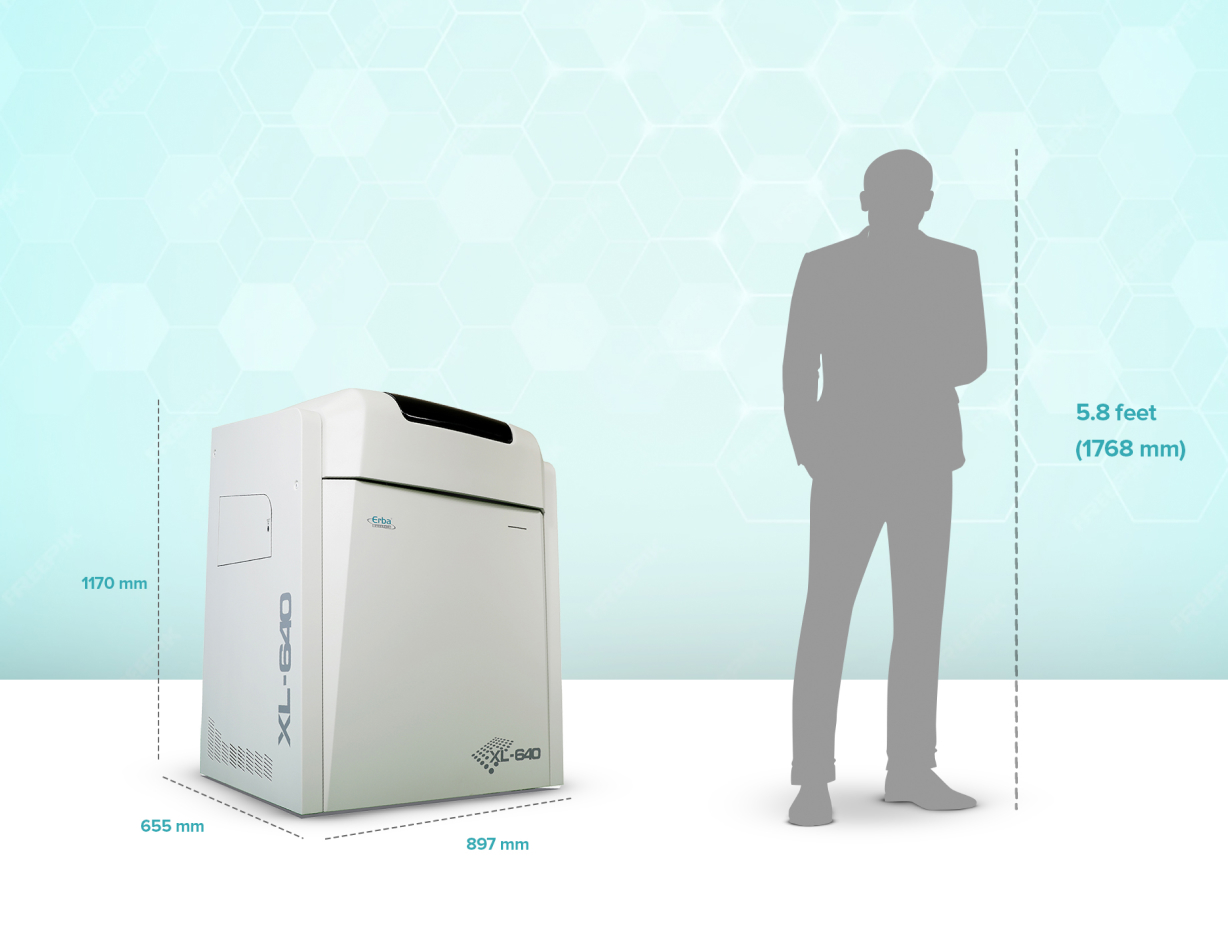

Dimensions (mm)
Approximately 897 mm (w) x 655 mm (D) x 1170 mm (H)
Weight
Approximately 200 Kg
Sample Handling
Sample
Serum, Plasma, Urine, CSF, Whole blood, other
Sample Rack
upto 82 positions for samples/STAT/calibrator/controls
Sample Pipetting
2-70 µl (adjustable in 0.1 µl steps) for biochemistry,70 µl fixed for ISE capacitance probe with liquid level sensing and vertical obstruction detection , clot detection and serum indices.
Auto Rerun
Repeat with same, increade and decresaed volume (upto 1:150)
Sample Tubes/ Cups
Primary tubes of 5 ml, 7ml and 10 ml and sample cups
Reagent Handling
Reagent Tray
56 positions for reagents with on-board cooling
Reagent Pipetting
Capacitance probe with level sensing and vertical obstruction detection
R1
60 - 300 µl (Adjustable in 1 µl step)
R2
0 or 10 - 300 l (Adjustable in 1 µl step)
System Interface
Analyzer - PC
USB
Computer
Bidirectional TCP/IP & RS-232
PC - Printer
USB
Operating system
Windows-based
PC- HOST Computer
Bidirectional TCP/IP and RS - 232
Database
Unlimited results
