XL 640 CRS

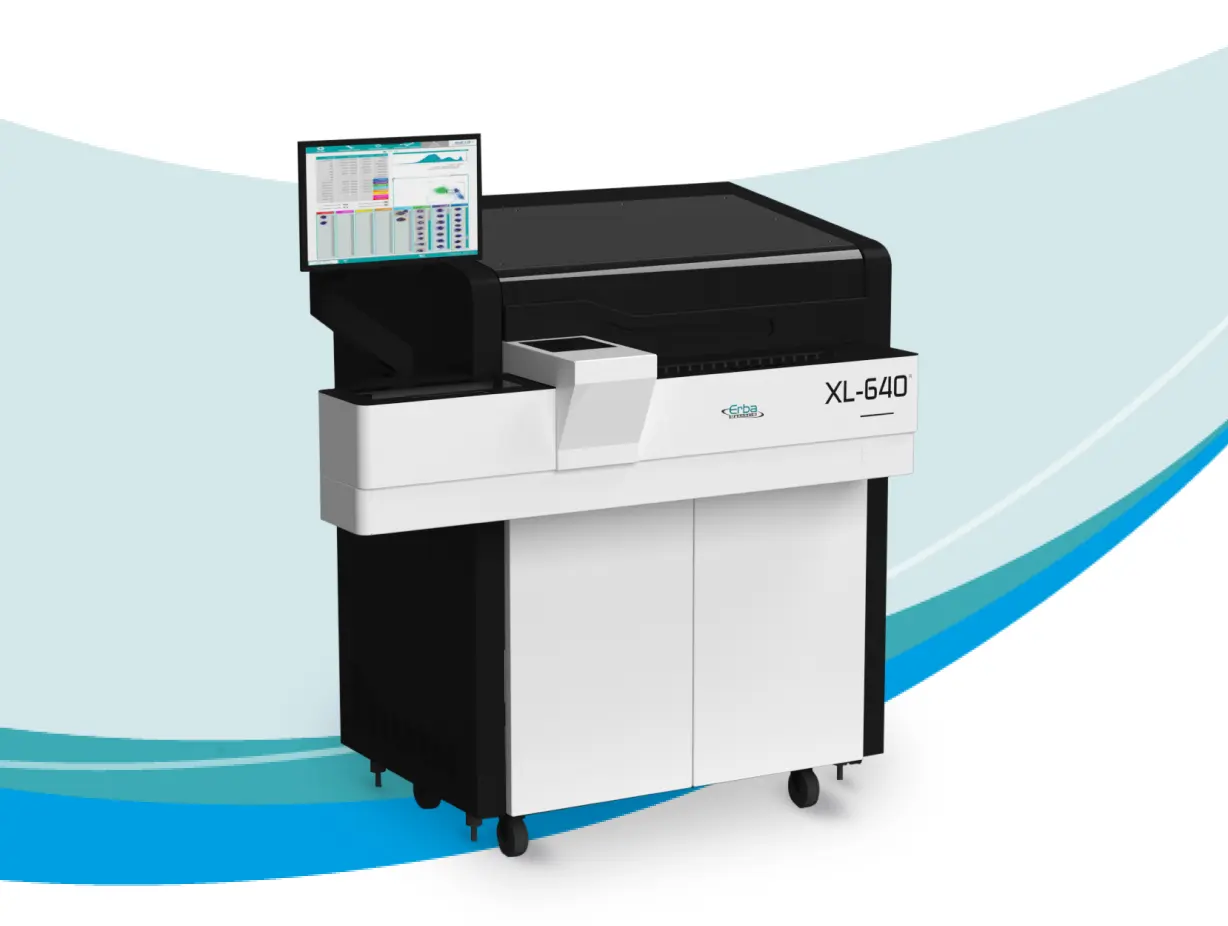

XL 640 CRS is a Fully Automated Clinical Chemistry Analyzer with Autoloader
XL 640 CRS
XL 640 CRS is a Fully Automated Clinical Chemistry Analyzer with Autoloader
Meet the XL 640 CRS
Product Specifications
Throughput
Throughput: 400 tests / hour photometric and 640 tests / hour with ISE* (*optional ISE with Na+, K+, Cl-, Li+)
Your Benefit:
Manages workload of 200-400 samples per day
Multipositional
56 Cooled reagent positions and 160 Sample positions with continuous sample loading autoloader
Your Benefit:
Provides flexibility to perform many parameters at a time which improves TAT
VersaSpectra
Multi Wavelength Diffraction grating photometer with 12 wavelengths
Your Benefit:
Ensures accurate test results
CuvetteEase
72 Permanent Hard Glass Cuvettes with on board laundry and 180 µl reaction volume
Your Benefit:
Reduces CPRT and ensures zero operational cost
Probe Care
Separate reagent probes for R1, R2 and Sample with internal external washing
Your Benefit:
Reduces carryover
IndexTrace
Inbuilt clot detection and Serum indices identification with Reflex testing
Your Benefit:
Ensures sample integrity saving time and reagent costs by avoiding test reruns
System Pack
Dedicated System pack
Your Benefit:
Routine as well as specialised Barcoded reagents packs common for all Erba FAA
Routine Chemistries: LFT, KFT, Lipids, Diabetic Profile, Ions, Anaemia profile, many more parameters available along with controls and calibrators
Special Chemistries: HbA1c, Iron, UIBC, Ferritin, RF, CRP, ASO, MAL, Glucose with Hexokinase Method.
System General
System Type
Automated, Discrete, Random Access, Patient Prioritized Clinical Chemistry Analyzer with Autoloader
Throughput
400 photometric tests/hour & 640 tests/hour with ISE (*optional ISE with Na, K, Cl, Li)
Analytical Methods
1-Point, 2-Point, Rate-A, Rate-B, Direct Potentiometry(optional)
Barcode Reader
Both for Samples & Reagents (Optional)
Reaction Tray
72 hard glass cuvettes
Reaction Mixing
Dual Stirrer with variable speed
Reading Volume
180 µl
On-board Laundry
6 stage cleaning, 2 stage drying
Photometer
Multi-wavelength diffraction grating with 12 wavelengths (340, 376, 415, 450, 480, 505, 546, 570, 600, 660, 700 & 750 nm)
Calibration
K- factor, Linear (1,2 point and multipoint) 4P and 5P Logit-log, Cubic spline,exponential, polynomial. On-board serial dilution for calibrator
OD Range
0 - 3.0
Light Source
Halogen Lamp
Detector
Silicon Photodiodes
Water Consumption
< 14 liters/hour
Programmable Parameters:
Default system pack parameters + upto 99 user defined parameters, Unlimited profiles and unlimited calculation items
Quality Control:
Q.C. plot data with Q.C. Rules. Provision for lab mean. Twin plot.
Caliberation:
K- factor, Linear (1,2 point and multipoint) 4P and 5P Logit-log, Cubic spline,exponential, polynomial. On-board serial dilution for calibrator
Power Requirement:
AC 220 V ± 10 %, 50 Hz orAC 110 V ± 10 %, 60 Hz
Power Consumption:
800 VA
Dimensions:
Approximately 897 mm (w) x 655 mm (D) x 1170 mm (H)
Weight:
Approximately 200 Kg
Sample Handling
Sample
Serum, Plasma, Urine, CSF, Whole blood, other
Sample Unit:
Upto 162 positions for samples/STAT/calibrator/controls with Autoloader
Sample Pipetting
2-70 µl (adjustable in 0.1 µl steps) for biochemistry,70 µl fixed for ISE capacitance probe with liquid level sensing and vertical obstruction detection , clot detection and serum indices and Reflex Testing
Auto Rerun
Repeat with same, increade and decresaed volume (upto 1:150)
Sample Tubes/ Cups
Primary tubes of 5 ml, 7ml and 10 ml and sample cups
Reagent Handling
Reagent Tray
56 positions for reagents with on-board cooling
Reagent Pipetting
R1: 60 - 300 µl (Adjustable in 1 µl step)R2: 0 or 10 - 300 l (Adjustable in 1 µl step) Capacitance probe with level sensing and vertical obstruction detection
System Interface
Analyzer - PC
USB
Computer
Bidirectional TCP/IP and RS - 232
PC - Printer
USB
Operating system
Windows based with Touch Screen User Friendly GUI
Database
Unlimited results
