VERTEX Hb
Automated Glycohemoglobin Analyzer
VERTEX Hb
Automated Glycohemoglobin Analyzer

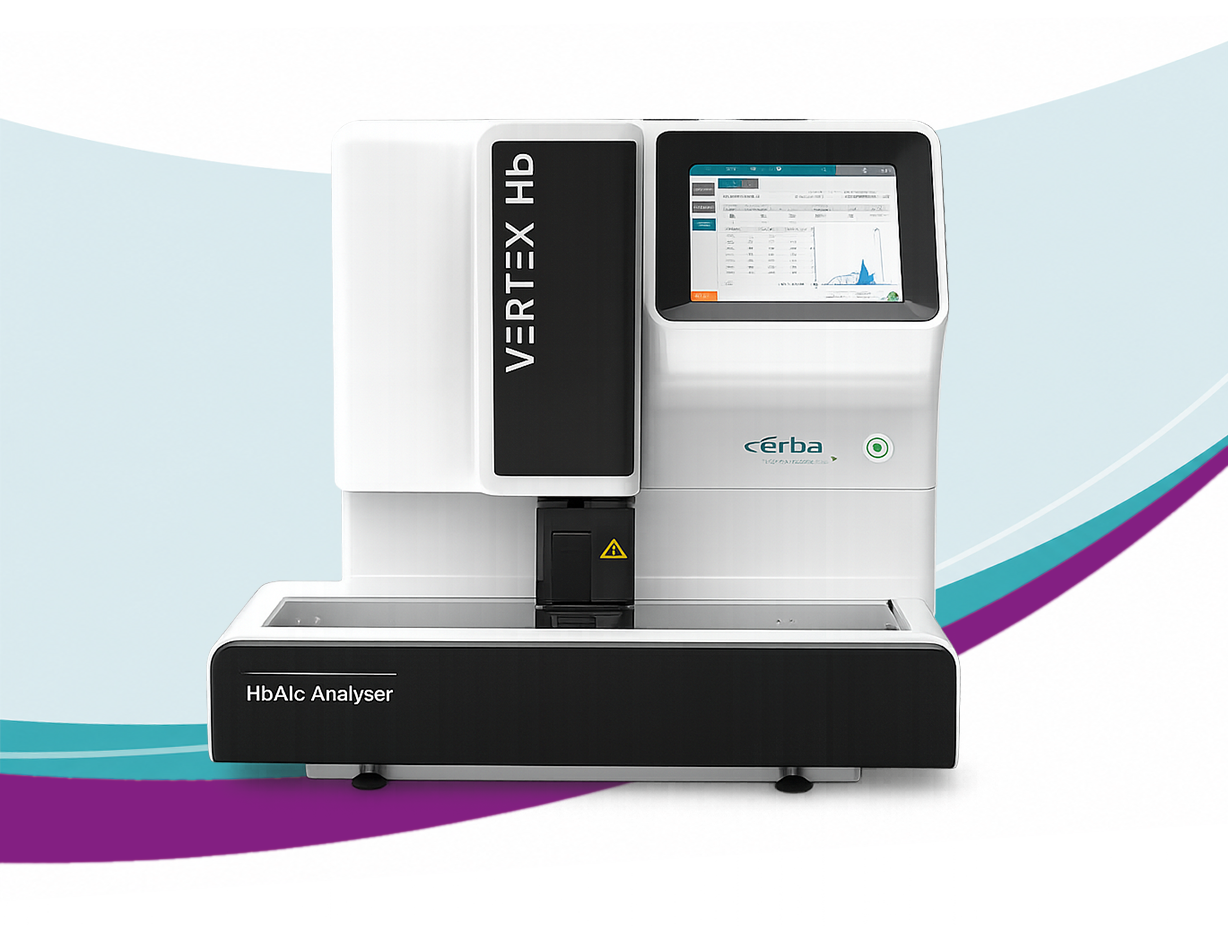

Meet the VERTEX Hb
VERTEX Hb is an automated glycohemoglobin analyzer designed for accurate and reliable HbA1c testing and haemoglobin variant identification. Designed to deliver the gold standard in diabetes monitoring, this advanced HPLC analyzer based on Ion-Exchange Chromatography ensures precise separation of haemoglobin variants, catering to the diagnostic needs of clinical laboratories seeking accuracy, speed, and traceability.
Product Specifications
Methodology
HPLC — Gold Standard | Ion-Exchange Chromatography
Your Benefit:
Precise separation of haemoglobin variants ensures accurate and reliable HbA1c results.
Throughput
60 Tests/Hour (Standard Mode) | 96 sec/Test (Variant Mode)
Your Benefit:
Supports high-efficiency laboratory workflows with faster turnaround times.
Precision
CV < 1.0% Repeatability
Your Benefit:
Delivers consistent and reliable HbA1c results, supporting confident diabetes management.
Result
Both IFCC (mmol/mol) and NGSP (%) — in graphic and value report
Your Benefit:
Internationally standardised dual reporting supports ease of clinical interpretation.
Quality Control
On-board QC with Levey-Jennings graph and statistical calculations
Your Benefit:
Supports compliance with laboratory guidelines through comprehensive QC monitoring and unlimited QC data storage.
Detection
UV-Vis detector
Your Benefit:
No interference from HbF (up to 10%), lipemia, or icterus, making it suitable for non-fasting samples.
Display
Android touchscreen with HDMI interface
Your Benefit:
Ensures ease of operation with minimal training requirements.
Automated Glycohemoglobin Analyzer designed for accurate and reliable HbA1c testing and diabetes monitoring in clinical laboratories.
Technical Specification
Measurement Principle
Ion-Exchange HPLC
Test Mode
Standard Mode / Variant Mode
Throughput
Standard Mode: 60s / test (60 tests/hour) Variant Mode: 96s / test
Measurement Items
HbA1c, HbA1 and HbF
Measurement Range
HbA1c: 3% – 20%
Repeatability
CV < 1.0%
Sample Type
Whole Blood and Diluted Blood
Sample Aspiration Volume
Whole Blood: 10 µlLysate Mode: 670 µl
Sample Handler
10 Samples/Rack × 9 Racks - Continuous Circulating Rack Sampling System
Sample Management
LIS Loading, Barcode Scanning
Emergency
1 STAT Position
Detector Type
UV-Vis
HbA1c Report Format
Both IFCC (mmol/mol) and NGSP (%) — in graphic and value report
Reagent Management
RFID scanning automatically loads lot number, expiry date, and remaining volume
Consumables
Elution Buffer, Hemolysis & Wash Solution, Column, Filter, Calibrator, Control
Operation Interface
Android Operation Software, HDMI Touch Screen
User Management
Authorisation Settings for Different User Levels
Data Storage
1,00,000 results — available for statistics, online queries, data backup, and data export
Export & Communication
RJ45 (Bi-directional) | Built-in Thermal Printer | Chromatogram Transfer via LIS with Patient Data
Maintenance
Automatic Maintenance at Startup and Shutdown | Alarm and Error Indication | Daily Maintenance Reminder & Guidance
Power Supply
AC 120–240V, 50/60Hz, 24V/15A
Dimensions (mm)
560(L) × 590(W) × 490(H)
